3in Directional spot recessed, 5CCT, multi-wattage
Image may not reflect selected features
/vendors/776/large/mfd03-bk_01.jpg
additional image
additional image

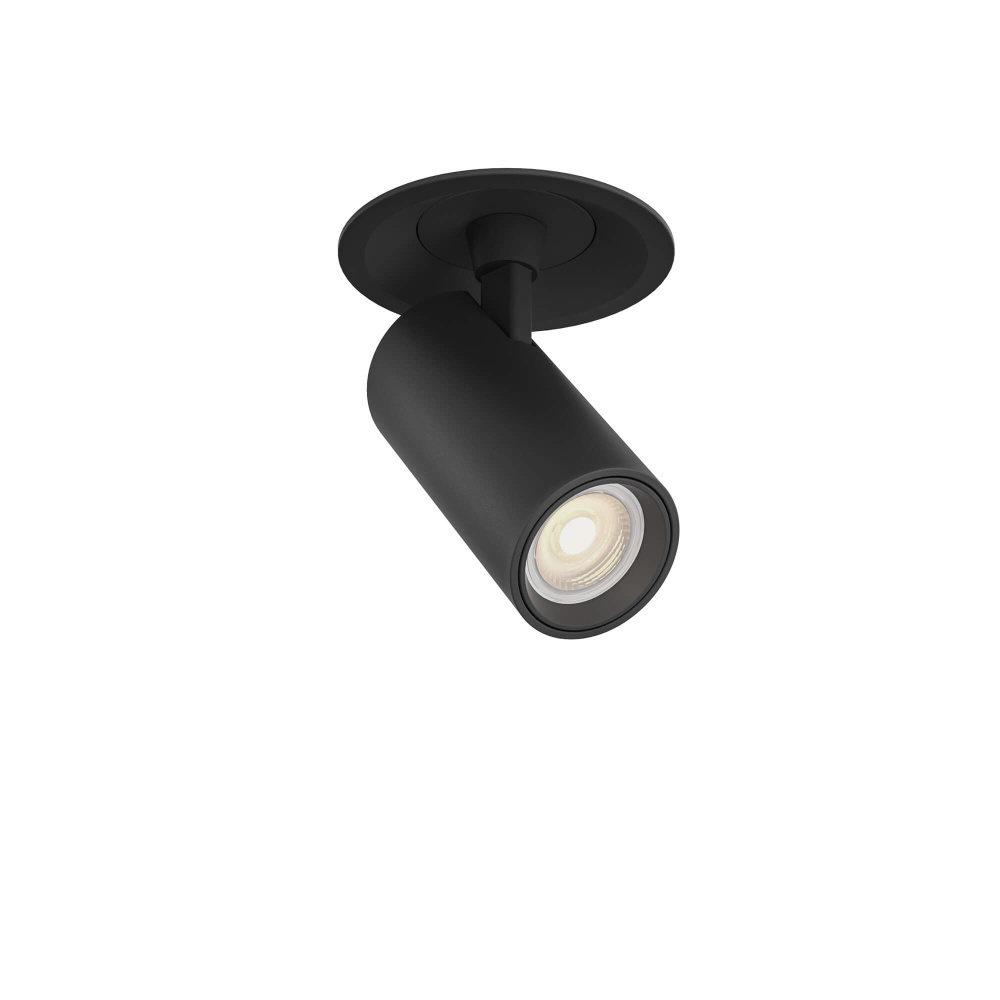

3in Directional spot recessed, 5CCT, multi-wattage (6Y27F) by Dals MFD03-MW-CC-BK
From residential use to art gallery and boutiques, our Multi Function Downlight will check all the boxes. You can choose between recessed light or spotlight, control the beam angle as well as tilt the head while used as a spotlight.
Downloads
Product Specification
Item #
6Y27F
Dimensions
Height: 7.00"
Width: 3.75"
Length: 3.75"
Additional product details
Internal #
6Y27F
Category
Recessed Ltg. , Directional Lights
Subcategory
Other Recessed Ltg. , Directional Recessed Lights
Finish
Black
Option
Title 24 , Dry Rated
Category
Recessed
Subcategory
Directional
Finish
Black
Family
Aperture
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.40.9000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4
Ship Carton Length
8.7
Ship Carton Width
5.9
Ship Weight
1.5
Warranty
5 Years Limited
Beam Angle
30°/60°
Bulb CRI
90
Country of Origin
China
Delivered Lumens
600/800/1000
Dimmer Type
Triac/ELV
Energy Star
No
Indoor
Yes
IP Rating
IP20
JA8
Yes
Lens Material
Acrylic
Location Rating
Dry Rated
Max Wattage
8 W/10 W/12 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
8.47
Shipping Master Length
26.18
Shipping Master Quantity
10
Shipping Master Weight
15
Shipping Master Width
10.43
Title 24
Yes
Wiring
Hardwired
Manufactured By
Dals


Other Details:
  • 5-year warranty
  • Adjustable beam angle from 30° to 60°
  • Every fixture includes a junction box with integrated dimmable driver
  • Suitable for dry locations
  • Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K in canopy
Finish
