2-in-1 LED puck, 5CCT
Image may not reflect selected features
/vendors/776/large/4005fr-wh_02.jpg
additional image
additional image

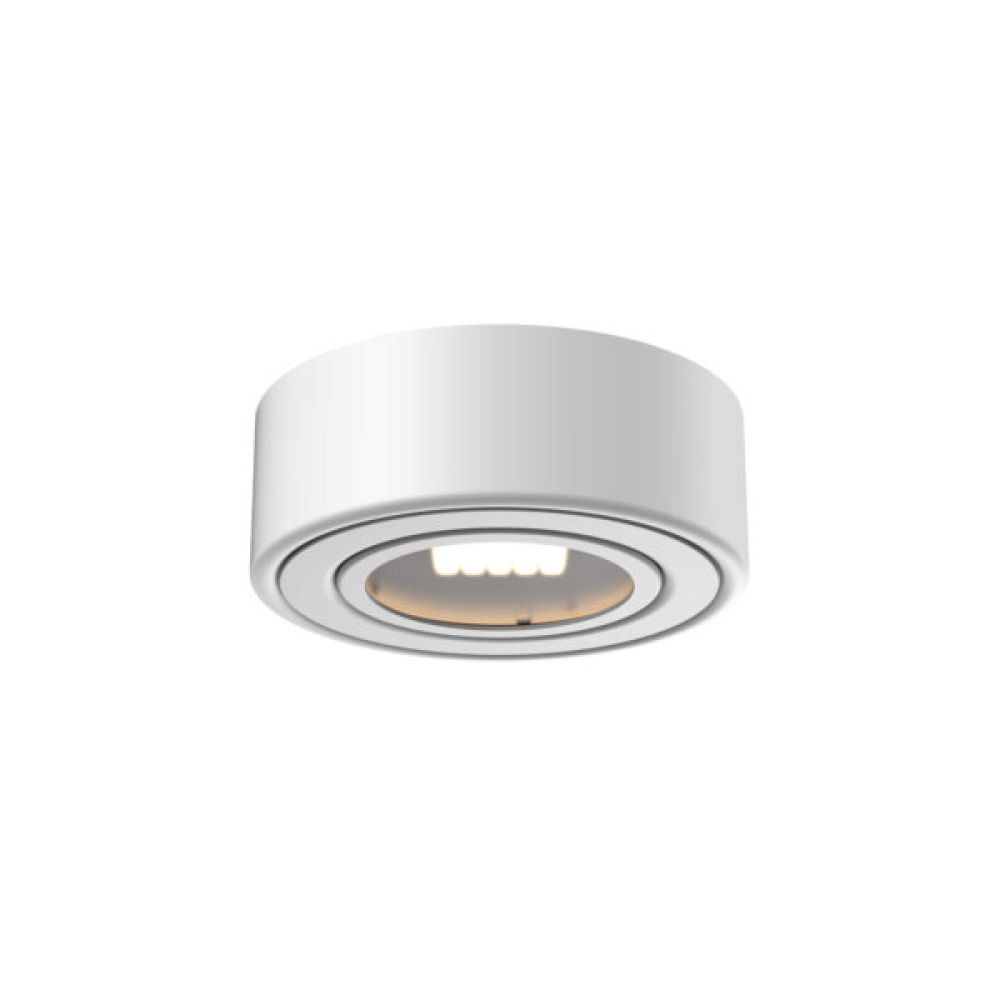

2-in-1 LED puck, 5CCT (6Y09T) by Dals 4005-CC-WH
These robust LED pucks feature a frosted lens that delivers highly efficient punches of light, making them well-suited for a variety of applications, including under-cabinet lighting. Whether you prefer a warm, inviting ambiance or a cool, vibrant glow, this puck light offers selectable color temperature options from 2700K to 5000K.
Downloads
Product Specification
Item #
6Y09T
Dimensions
Height: 1.10"
Width: 2.95"
Length: 2.95"
Additional product details
Internal #
6Y09T
Category
Undercabinet
Subcategory
Puck Lights
Finish
White
Option
Dry Rated
Category
Undercabinet
Subcategory
Puck
Finish
White
Family
Duo-Puck
Voltage
12 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.40.90.00
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4
Ship Carton Length
3.35
Ship Carton Width
1.38
Ship Weight
0.58
Warranty
5 Years Limited
Weight
0.38
Air-Tight (ASTM E283--4)
No
Beam Angle
100°
Bulb CRI
80
Country of Origin
China
Delivered Lumens
138
Dimmer Type
Triac
Energy Star
No
IC Certification
Yes
Indoor
Yes
Lens Material
Glass
Location Rating
Dry Rated
Max Wattage
2 W
Maximum Working Temperature
50°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
7.87
Shipping Master Length
17.5
Shipping Master Quantity
50
Shipping Master Weight
29
Shipping Master Width
8.5
Wiring
Hardwired
Manufactured By
Dals


Other Details:
  • 12V DC LED driver required
  • 12″ input lead with quick connector
  • 24″ interconnection harness included
  • Smooth 360 degree wide spread
  • Switch-selectable CCT: 2700K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
27
90
/ / 1
($27.90 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 3250 items available.
