Emergency Light; 120-347V; 2HR Backup; Universal Mounting; Wet Location
Image may not reflect selected features
/vendors/27/large/67-580.jpg
additional image

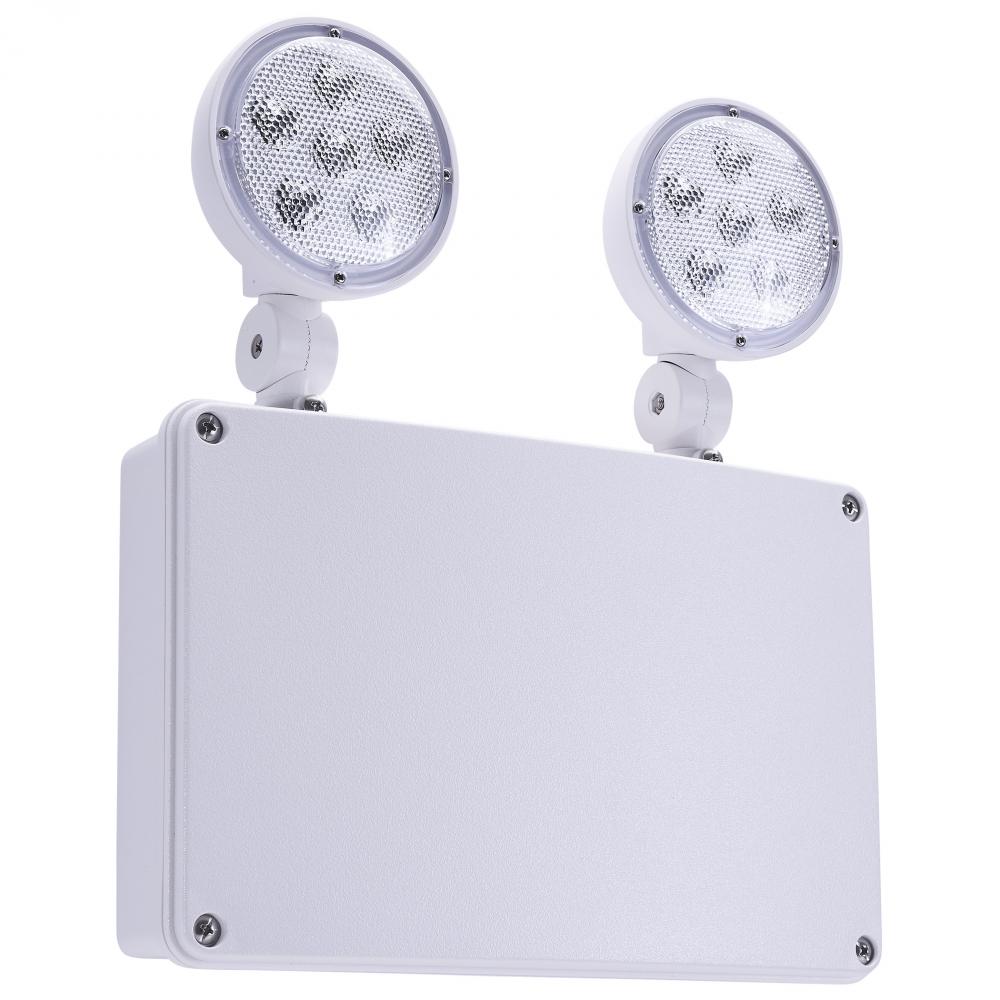

Emergency Light; 120-347V; 2HR Backup; Universal Mounting; Wet Location (X9MUD) by Satco Products Inc. 67/580
Emergency Light; 120-347V; 2HR Backup; Universal Mounting; Wet Location
Product Specification
Item #
X9MUD
Dimensions
Height: 11.56"
Width: 10.20"
Additional product details
Internal #
X9MUD
Option
LED , Prop 65
Category
Lighting Products
Sub Category
Emergency Lighting
Style
Utility
Bulb Kelvin
Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Non-Dimmable
Harmonized Codes
9405.42.6000
Lumens
600L
Ship Carton Height
10.43
Ship Carton Length
12.48
Ship Carton Width
2.83
Warranty
2-Years
Amps
0.029-0.010A
ANSI Base
Integrated
Battery Chemistry
Ni-Cad
CA Prop-65
Lead
Carton Cubic Feet
0.2132
Cartons Per Unit
1
CCT Selectable
No
CEC
Non-Compliant - Never Tested
CEC Terse
Non-Compliant
CEC Web Text
Non-Compliant
Country Of Origin
China
CRI
80+
Depth
2.72
Efficacy
171.43 LPW
FCC Compliant
Yes
Feature 1
Dual Light Heads
Feature 10
>500 Life Cycles
Feature 2
Integrated Battery Backup
Feature 3
Interchangeable Pictograms
Feature 4
Surface Mounted
Feature 5
Wet Location Rated
Feature 6
120-Minute Battery Run Time
Feature 7
Complies with ICES-005 Class B
Feature 8
CSA, OSHA, and NFPA Compliant
Feature 9
Push-to-Test Button
Finish Family
White
Has Emergency Battery
Yes
Indoor Outdoor
Indoor and Outdoor
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Keep your building safe and secure with SATCO NUVO 67-580 LED Emergency Lights. Two adjustable light heads provide ample illumination in the event of an emergency for up to two hours with the integrated battery backup. All models are wet location rated for
Material
Thermoplastic
Mounting Procedure
Universal
Operating Frequency
50/60Hz
Operating Temprature
0C (+32F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.45
Quantity In Pack
1
R9 Value
15
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Keep your building safe and secure with SATCO NUVO LED Emergency Lights. Two adjustable light heads provide ample illumination in the event of an emergency for up to two hours with the integrated battery backup. All models are wet location rated for use in
Safety Listing
CSAus
SDS class
LED_Fixture
Short Description
EM LIGHT-CAN-WET
Sloped Ceiling Compatible
No
Specification Notes
Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
Temperature (CCT)
5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
120%-140%
Wattage Selectable
No
Weight Lb.
2.2
Manufactured By
Satco Products Inc.
