90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
Image may not reflect selected features
/vendors/27/large/S29679.jpg
additional image

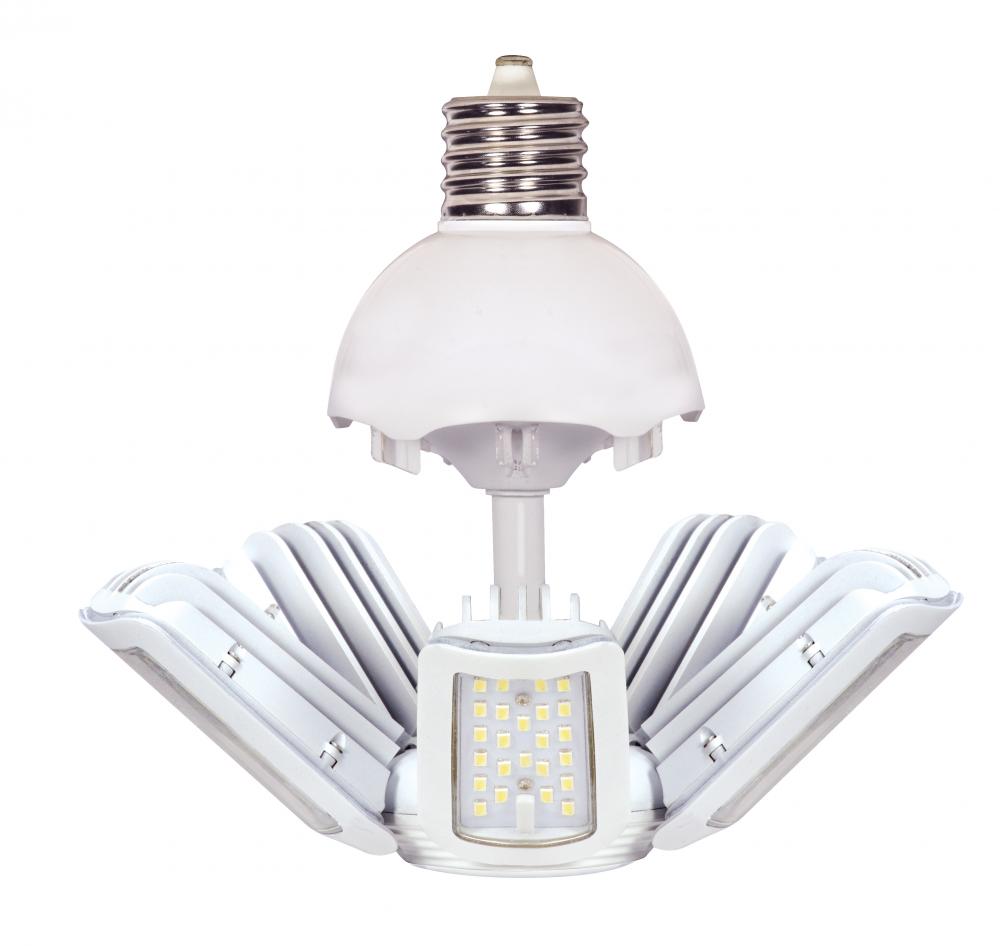

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt (LRJ3X) by Satco Products Inc. S29679
90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
Product Specification
Item #
LRJ3X
Dimensions
Width: 4.94"
Additional product details
Internal #
LRJ3X
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
Corncob
Diameter
4.94
EA Length
6.5
Harmonized Codes
8539.50.0091
Length
10.03
Lumens
11700L
Shap Carton Width
6.5
Ship Carton Height
11.42
Ship Weight
4.47
Warranty
5 Year Limited - Hi-Pro
Weight
3.48
Additional Info
Width 360 deg 4.91 in.; Width 270 deg 10.87 in.; Width 180 deg 12.60 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
360
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
Clear
Burning Position
Base Up or Down
Carton Cubic Feet
0.2792
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
130.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Flourescent Equivalent
200W
HID Equivalent
600W
Housing Color
White
Incandescent Equivalent
750W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP65
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Location Rating
Damp
Minimum Compartment Size
Length: 22 in. Width: 17 in. Depth: 17 in.
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +65C (+149F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
SDS class
LED_Lamp
Short Description
90W/LED/HID/MB/5000K/100-277V
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
90W
Manufactured By
Satco Products Inc.
Finish Family
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
175
92
/ / 1
($175.92 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer may be Out Of Stock.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
