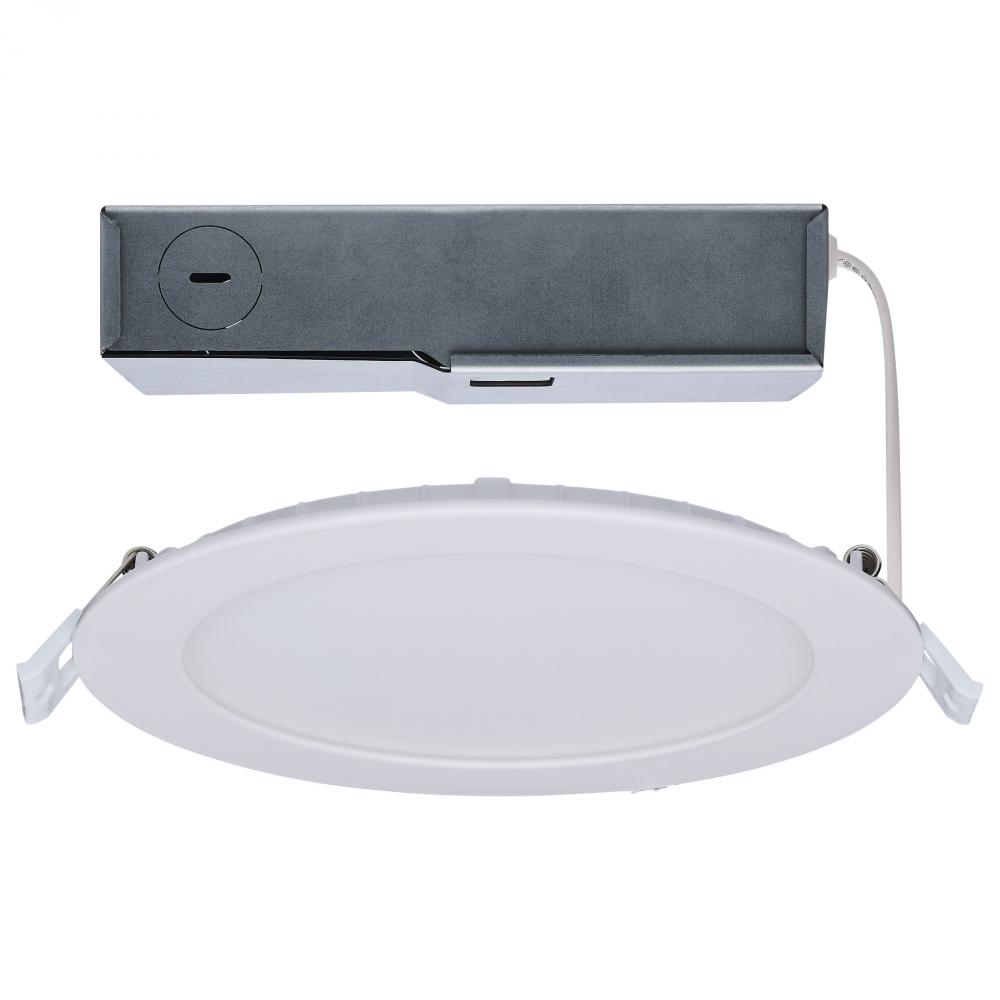

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat (X9LUR)
by Satco Products Inc. S11691
11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming
Product Specification
Item #
X9LUR
Dimensions
Height: 1.34"
Width: 6.77"
Additional product details
Internal #
X9LUR
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
6.77
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.6010
Lumens
1050L/1350L
Ship Carton Height
6.89
Ship Carton Length
6.81
Ship Carton Width
2.48
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.092-0.040/0.125-0.054A
ANSI Base
Integrated
Beam Spread
108
CA Prop-65
Lead
Carton Cubic Feet
0.0673
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
6.19 in. Cutout
Closet Rated
Yes
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
90+
Dimmable Down To
100 to 10 percent
Dimmable Function
Triac at 120V / 0-10V at 120-277V
Dimming Type
Dual Dimming
Efficacy
95.45/90.00 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-3994345
FCC Compliant
Yes
Feature 1
Wattage Selectable for High & Very High Outputs
Feature 10
5 Year Warranty
Feature 2
5 CCT Selectable from Warm to Natural Light
Feature 3
Flat Face Design for Reduced Glare
Feature 4
NEC Compliant Junction Box
Feature 5
Dual Dimming
Feature 6
FT6 Cable for Commercial Plenums
Feature 7
90 CRI
Feature 8
Wet Location Rated
Feature 9
50,000 Hour Functional Life
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
85W
Indoor Outdoor
Indoor and Outdoor
Installation Notes
Plenum Rated FT6 Cable
JA8 Compliant
Yes
Lens Finish
Matte Frosted
Lens Material
Acrylic
Long Description
The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11691 6-inch round model features field-selectable five CCT and two wattage options (11W/15W), delivering both high output (HO) and very high output (VHO)
Material
Aluminum
Mounting Diameter
6.18
Mounting Height
1.61
NEC Compliance
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
50
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
15WLED/DW/6/FS/RND/FL/DD
Sloped Ceiling Compatible
Yes
Specification Notes
Default CCT Setting: 2700K; Default Wattage Setting: 15W
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Trim Material
Aluminum
Wattage Selectable
Yes
Weight Lb.
1.29
Manufactured By
Satco Products Inc.
Finish
