20 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish
Image may not reflect selected features
/vendors/81/large/TH5011.jpg
additional image
additional image
additional image
additional image

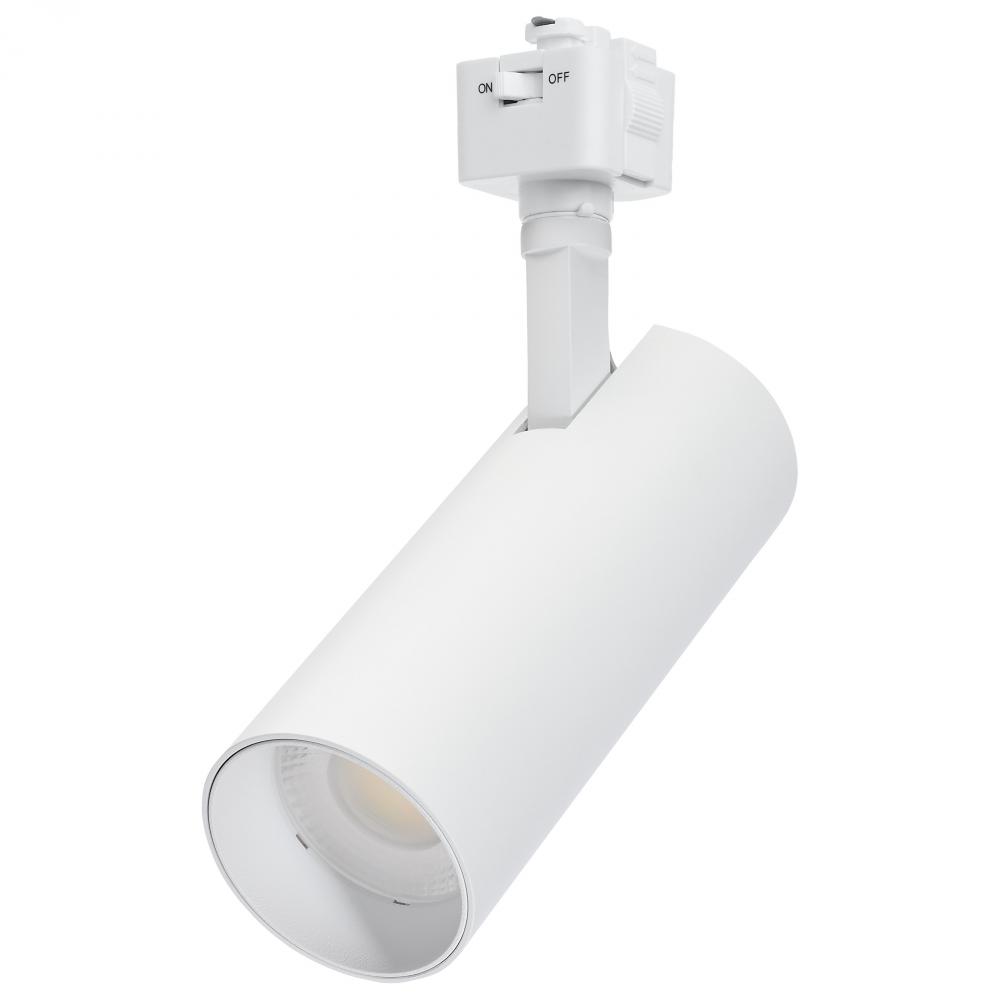

20 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish (A9AEP) by Nuvo TH5011
20 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish
Product Specification
Item #
A9AEP
Dimensions
Height: 5.88"
Width: 2.43"
Additional product details
Internal #
A9AEP
Option
LED , Prop 65
Category
Track Lighting
Sub Category
Track Head
Style
Contemporary
Bulb Volts1
120V
Avg Rated Hours
30000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Dimmable
Yes-Dimmable
Each Height
8.94
Each Length
3.07
Each Width
2.68
Length
6.31
Lumens
1400L
Tariff Code
9405.11.6020
Warranty
3-Years
Amps
0.180A
ANSI Base
Integrated
Beam Angle
36
CA Prop-65
Lead
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
90+
Dimmable Function
120V only
Dimming Type
Triac
Each Cube
0.0426
Each Quantity
1
Efficacy
70.00 LPW
FCC Compliant
Yes
Feature 1
J-Style Single and 2 Circuit Track Compatible
Feature 2
36 Degree Beam Angle
Feature 3
5 CCT Selectable
Feature 4
90 CRI High Quality Light
Feature 5
Matte White Finish
Feature 6
Dimmable
Feature 7
T24 Compliant
Feature 8
30,000 Life Hours
Feature 9
3 Year Warranty
Finish Family
White
Has Camera
No
Has Emergency Battery
No
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
IOT Enabled
No
Lens Finish
Clear
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
New to SATCO NUVO, the TH5011 LED CCT Selectable track head fixture is finished in matte white, operates at 20 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Cir
Material
Aluminum / Steel
Mounting Procedure
Track
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
New to SATCO NUVO, these LED CCT Selectable track head fixtures are now compatible with both Single Circuit and 2 Circuit J-Style track systems, offering expanded versatility for a range of lighting applications. J-Style track-widely used in residential an
Safety Listing
cETLus;cETLus - Listed
Short Description
20W CCT LED TRK 36 WHT J-STYLE
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Track Head Style
J-Style
Wattage Selectable
No
Weight Lb.
1.02
Manufactured By
Nuvo
